Electrical cabinet for operations of the spindles HFSAC-8022-24, HFS-8022-24 and HFP-8022-24/30.
Equipped with the listed interfaces:
- Power supply cable 5 m with double protective conductor
- Spindle connection cable 6 m

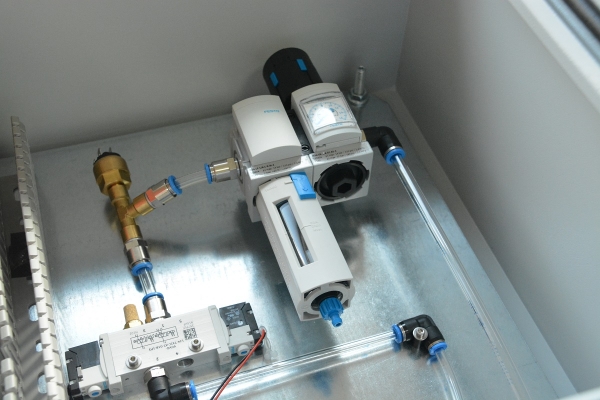

- Pneumatic control for option sealing air
- 25-pol SUB-D plug, Configuration: 1 = Start/Stop, 12 = FU-Alarm (NC Contact), 18 = rotational speed value 0-10 V
- XLR1-1, XLR1-2 = Emergency-Stop Channel 1, XLR1-3, XLR1-4 = Emergency-Stop Channel 2,
- XLR2-2 = Sealing Air On (3-30VDC), XLR2-3 = 24VDC
