Class 1, Runout < 5µm

These collets are Class 1 high precision collets for very accurate runout of the tools. The maximum concentric runout tolerance is 0,005 mm, measured at the clamped cylindrical tool shaft.
A very accurate runout leads to higher precision machining, less vibrations and a higher lifetime of the tools.

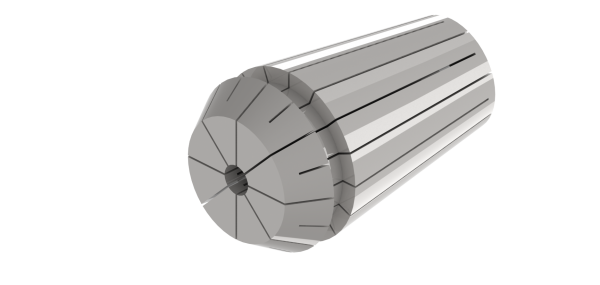

HP Collet ER 11
Collet ER 11 4008E DIN 6499B. High precision quality, runout < 5µ

Clamping range is 0,5 mm downwards (f.e. 4mm collet can clamp tools with diameter between 3,5 mm and 4 mm)

Diameter 1-7 mm (0,5 mm steps) available.

Matching to our spindles HFP-6508-24
Diameter:
Shippingtime: ex stock avalaible ex stock avalaible
(abroad may vary)
Weight: 0,1 kg per piece
43,44 EUR
incl. 19% tax excl. Shipping costs
HP Collet ER 16
Collet ER 16 426E DIN 6499B. High precision quality, runout < 5µ

Clamping range is 0,5 mm downwards for collets < 3 mm (f.e. 2 mm collet can clamp tools with diameter between 1,5 mm and 2 mm) and 1 mm for collets >3 mm.

Diameter 1-10 mm available.

Matching to spindles HFP-8022-24
Diameter:
Shippingtime: ca. 3-4 days ca. 3-4 days
(abroad may vary)
Weight: 0,01 kg per piece
43,44 EUR
incl. 19% tax excl. Shipping costs
HP Collet ER20
Collet ER 20 426E DIN 6499B. High precision quality, runout < 5µ

Clamping range is 1 mm downwards (f.e. 4 mm collet can clamp tools with diameter between 3 mm and 4 mm).

Diameter 2-13 mm available. (1 mm steps)

Matching to our spindles HFP-8022-24, HFP-10030-24, HFP-10040-24, HFP-D-8015-12, HFP-D-10525-09, HFP-M-8022-24
Diameter:
Shippingtime: ca. 3-4 days ca. 3-4 days
(abroad may vary)
Weight: 0,1 kg per piece
43,44 EUR
incl. 19% tax excl. Shipping costs
HP Collet ER25
HP Collet ER 25 DIN 6499B. Industry quality, runout < 5µ

Clamping range is 1 mm downwards (f.e. 4 mm collet can clamp tools with diameter between 3 mm and 4 mm)

Diameter 2-13 mm (1 mm steps) available.

Matching to our spindles HFPAC-8022, HFS-12545-24, HFP-M-12040-18
Diameter:
Shippingtime: 2 Weeks 2 Weeks
(abroad may vary)
43,44 EUR
incl. 19% tax excl. Shipping costs
HP Collet Set ER11, 13 pieces 1-7 mm

Collet Set ER 11 4008E DIN 6499B, 13 pcs in 0,5 mm steps from 1 mm to 7 mm. High precision Quality, runout < 5µ

Including case for organized storage.

Clamping range is 0,5 mm downwards (f.e. 4 mm collet can clamp tools with diameter between 3,5 mm and 4 mm)

Matching to spindles HFP-6508-24

Shippingtime: ca. 3-4 days ca. 3-4 days
(abroad may vary)
Weight: 1 kg per piece
430,78 EUR
incl. 19% tax excl. Shipping costs
HP Collet Set ER16 10 pieces 1-10 mm
Collet Set ER 16 DIN 6499B, 10 pcs in steps of 1 mm from 1 mm to 10 mm. High precision quality, runout < 5µ

Including case for organized storage.

Clamping range is 1 mm downwards (f.e. 4 mm collet can clamp tools with diameter between 3 mm and 4 mm)

Matching to spindle HFP-8022-24.
Shippingtime: 1 Week 1 Week
(abroad may vary)
Weight: 1 kg per piece
386,75 EUR
incl. 19% tax excl. Shipping costs
HP Collet Set ER20 12 pcs 2-13 mm
Collet Set ER 20 DIN 6499B, 12 pcs in steps of 1 mm from 2 mm - 13 mm. High precision quality, runout < 5µ

Including case for organized storage.

Clamping range is 1 mm downwards (f.e. 4 mm collet can clamp tools with diameter between 3 mm and 4 mm)

Matching to spindles HFP-8022-24, HFP-10030-24, HFP-10040-24
Shippingtime: ca. 3-4 days ca. 3-4 days
(abroad may vary)
Weight: 1,5 kg per piece
451,01 EUR
incl. 19% tax excl. Shipping costs
HP Collet Set ER25 15 pcs 2-16 mm
HP Collet Set ER 25 DIN 6499B, 15 pcs in steps of 1 mm from 2 mm - 16mm. High precision quality, runout < 5µ

Including case for organized storage.

Clamping range is 1 mm downwards (f.e. 4 mm collet can clamp tools with diameter between 3 mm and 4 mm)

Matching to spindle HFPAC-8022 und HFS-12545-24
Shippingtime: 2 Weeks 2 Weeks
(abroad may vary)
Weight: 2 kg per piece
547,40 EUR
incl. 19% tax excl. Shipping costs
Show 1 to 8 (from a total of 8 products)
