Mini Indexable End Mills



In this category you can find our miniature indexable end mills with shaft diameters between 5 and 10 mm and cutting diameters of up to 20mm.
Thanks to the smaller shaft diameter of this tool you are able to mill plain surfaces with a mini-collet ( ER8 / ER11 / ER16 / ER20).

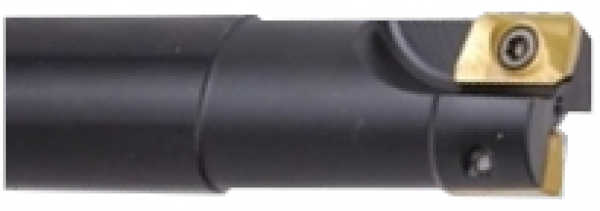

Single-bladed indexable mini end mill

Dimensions (Fig.1):
D = 10mm
d = 6mm
L = 50mm
L1 = 12mm
Gage Insert: 1x CZH04... (not included)
Shippingtime: 1 Week 1 Week
(abroad may vary)
296,56 EUR
incl. 19% tax excl. Shipping costs
Single-bladed indexable mini end mill

Dimensions (Fig.1):
D = 10mm
d = 7mm
L = 50mm
L1 = 12mm
Gage Insert: 1x CZH04... (not included)
Shippingtime: 1 Week 1 Week
(abroad may vary)
296,56 EUR
incl. 19% tax excl. Shipping costs
Single-bladed indexable mini end mill

Dimensions (Fig.1):
D = 10mm
d = 10mm
L = 50mm
L1 = 12mm
Gage Insert: 1x CZH04... (not included)
Shippingtime: 1 Week 1 Week
(abroad may vary)
296,56 EUR
incl. 19% tax excl. Shipping costs
Single-bladed indexable mini end mill

Dimensions (Fig.1):
D = 12mm
d = 10mm
L = 50mm
L1 = 12mm
Gage Insert: 1x CZH04... (not included)
Shippingtime: 1 Week 1 Week
(abroad may vary)
402,66 EUR
incl. 19% tax excl. Shipping costs
Two-bladed indexable mini end mill

Dimensions (Fig.2):
D = 14mm
d = 10mm
L = 50mm
L1 = 12mm
Gage Insert: 1x CZH04... (not included)
Shippingtime: 1 Week 1 Week
(abroad may vary)
610,15 EUR
incl. 19% tax excl. Shipping costs
Three blades indexable mini face mill

Dimensions (Fig.3):
D = 20mm
d = 7mm
L = 50mm
L1 = 12mm
Gage Insert: 1x CZH04... (not included)
Shippingtime: 1 Week 1 Week
(abroad may vary)
681,16 EUR
incl. 19% tax excl. Shipping costs
Three blade indexable mini face mill

Dimensions (Fig.3):
D =20mm
d = 10mm
L = 50mm
L1 = 12mm
Gage Insert: 1x CZH04... (not included)
Shippingtime: 1 Week 1 Week
(abroad may vary)
681,16 EUR
incl. 19% tax excl. Shipping costs
Show 1 to 8 (from a total of 9 products)
