ATC


The ATC-Series spindles have a pneumatic cone change for best use in part or fully-automated production processes. We ship with SK20, SK30, SK40 and HSK25 interfaces by default, additional construction types can be delivered upon request. The ATC-Series motor spindles are the right choice when achieving productivity goals by automated tool change without any length measurement after the change.



ATC-8022-24-ISO20 | 2,2 kW | 24.000 rpm | water-cooled
The ATC-8022-ISO20 is a high performance auto tool change spindle, designed for automated machining processes . Thanks to hybrid spindle bearings and a seal air protection, the bearings will last for several thousand working hours at speeds up to 36.000 rpm.

Download Datasheet:


Weight: 6,6 kg per piece
Price on request
ATC-8022-30-ISO20 | 2,2 kW | 30.000 rpm | water-cooled
The ATC-8022-ISO20 is a high performance auto tool change spindle, designed for automated machining processes . Thanks to hybrid spindle bearings and a seal air protection, the bearings will last for several thousand working hours at speeds up to 36.000 rpm.

Download Datasheet:


Weight: 6,6 kg per piece
Price on request
ATC-8022-36-ISO20 | 2,2 kW | 36.000 rpm | water-cooled
The ATC-8022-ISO20 is a high performance auto tool change spindle, designed for automated machining processes . Thanks to hybrid spindle bearings and a seal air protection, the bearings will last for several thousand working hours at speeds up to 36.000 rpm.

Download Datasheet:


Weight: 6,6 kg per piece
Price on request

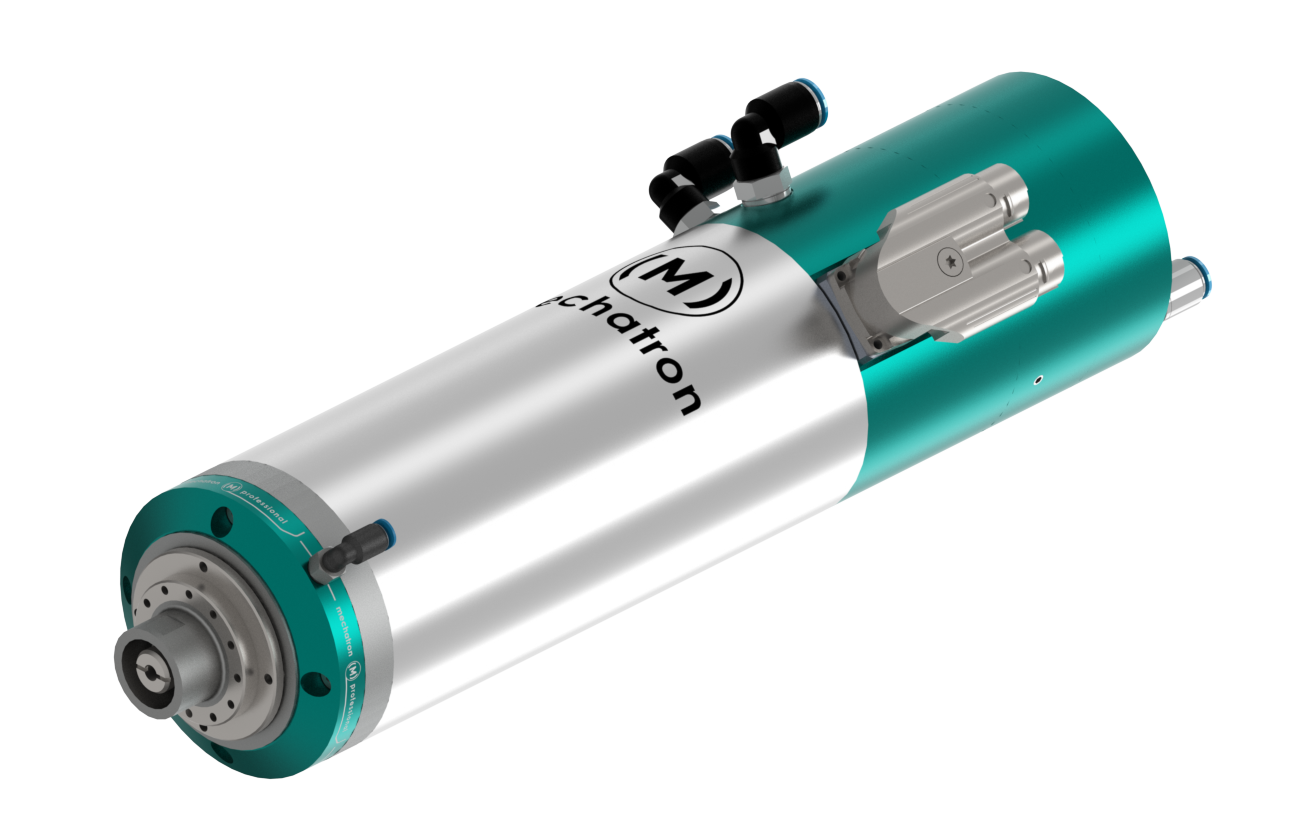

ATC-8022-30-HSK25 | 2.2 kW | 30,000 rpm | water-cooled
The ATC-8022-30-HSK25 is a high performance HSC auto tool change spindle which is designed to fulfill the requirements for automated production processes in High Speed Cutting applications with speeds up to 30.000rpm. The spindle is equipped with ultra-high precision bearings which are labyrinth sealed. The shaft uses a DIN normalized HSK25 taper for clamping high speed cutting tools.
  Datasheet:
Price on request
ATC-8022-42-HSK25 | 2.2 kW | 42,000 rpm | water-cooled
The ATC-8022-42-HSK25 is a high performance HSC auto tool change spindle which is designed to fulfill the requirements for automated production processes in High Speed Cutting applications with speeds up to 42,000 rpm. The spindle is equipped with ultra-high precision bearings which are labyrinth sealed. The shaft uses a DIN normalized HSK25 taper for clamping high speed cutting tools.

Datasheet
Price on request
ATC-11045-24-ISO30 | 4,5 kW | 24.000 rpm | water-cooled
The ATC-11045-24-ISO30 is a medium power auto tool change spindle, designed for automated machining processes. Thanks to hybrid spindle bearings and a seal air protection, the bearings will last for several thousand working hours at speeds up to 24.000 rpm.

Download Datasheet:


Weight: 23 kg per piece
Price on request
Show 1 to 6 (from a total of 6 products)
